WestJet Boeing 737-800 seat map

737-800 legacy layout 1 (174 seats: 12 Premium / 24 Extended Comfort / 138 other Economy)
174 seats12W/24N/138YLast verified Jul 16, 2026

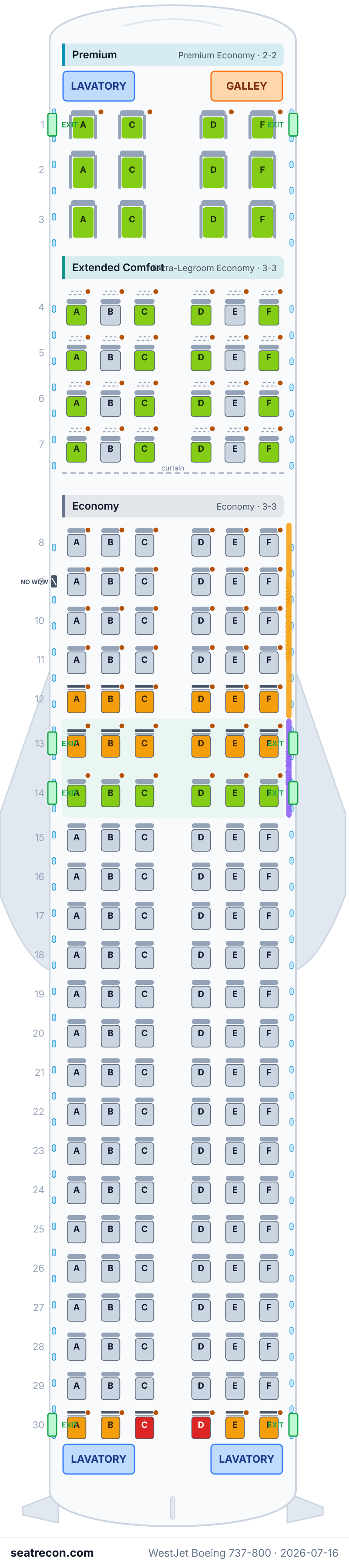

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
No window at seat 9A — Boeing routes the air-conditioning riser ducts up the left sidewall from the belly A/C packs to the ceiling distribution ducts, forward of the wing. The duct behind the sidewall panel displaces one left-side cabin window. Per Alaska fleet engineering this is standard on all 737 aircraft. (structural blank, confidence medium)NO WDWWINGZone: Preferred Economy (preferred)PREFERRED ECONOMYZone: Exit Row (premium)EXIT ROWPremiumPremium Economy · 2-2Extended ComfortExtra-Legroom Economy · 3-3EconomyEconomy · 3-3WC (left) — Forward lavatory shown on the WestJet diagram.🚻 WCGALLEY (right) — Forward service monument shown on the WestJet diagram.🍽 GALLEYcurtainWC (left) — One of two aft lavatories shown on the WestJet diagram.🚻 WCWC (right) — One of two aft lavatories shown on the WestJet diagram.🚻 WC123456789101112131415161718192021222324252627282930ACDFACDFACDFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFEXIT (door) — Forward entry/service doors.EXITEXIT (door) — Forward entry/service doors.EXITEXIT (type_iii_overwing) — Overwing emergency-exit pair shown on the WestJet diagram; exit grade is an aircraft-geometry interpretation.EXITEXIT (type_iii_overwing) — Overwing emergency-exit pair shown on the WestJet diagram; exit grade is an aircraft-geometry interpretation.EXITEXIT (type_iii_overwing) — Overwing emergency-exit pair shown on the WestJet diagram; exit grade is an aircraft-geometry interpretation.EXITEXIT (type_iii_overwing) — Overwing emergency-exit pair shown on the WestJet diagram; exit grade is an aircraft-geometry interpretation.EXITEXIT (door) — Aft entry/service doors.EXITEXIT (door) — Aft entry/service doors.EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Best & worst seats

Our rating engine's picks for this cabin layout — see any seat's full reasoning in the map above.

Think twice
  • 30C, 30D — Seat does not recline.

Cabins

Premium

12 seats · 2-2
Pitch
38"published
Width
21.3"published
Seat
Recliner
Power
AC power outlet · USB-A

97 cm (38 in) published for rows 2-3; row 1 faces a bulkhead and has no numeric pitch.

Extended Comfort

24 seats · 3-3
Pitch
35"published
Width
17.3"published
Seat
Extra-legroom seat
Power
AC power outlet · USB-A

WestJet publishes 86-89 cm (34-36 in) pitch and 5-10 cm (2-4 in) recline across rows 4-7; exact per-row split is not published on this page.

Economy

138 seats · 3-3
Pitch
30"published
Width
16.8"published
Seat
Standard seat, Non-reclining seat
Power
AC power outlet · USB-A

76 cm (30 in) pitch published; width 41-44 cm (16.2-17.3 in).

Preferred EconomyExit Row

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

3 lavatories · 1 galley · 4 door pairs

🚻 WC × 3🍽 GALLEY × 1🚪 EXIT × 4〰 curtain × 1

Amenities

Wi-Fi
Available
paid
Entertainment
Stream to your device
WestJet Connect streams entertainment to a guest's phone, tablet or laptop.
Power
AC power outlet · USB-A
Food & drink
Food and beverage offering varies by destination and flight duration.
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 16, 2026.

How this map was built

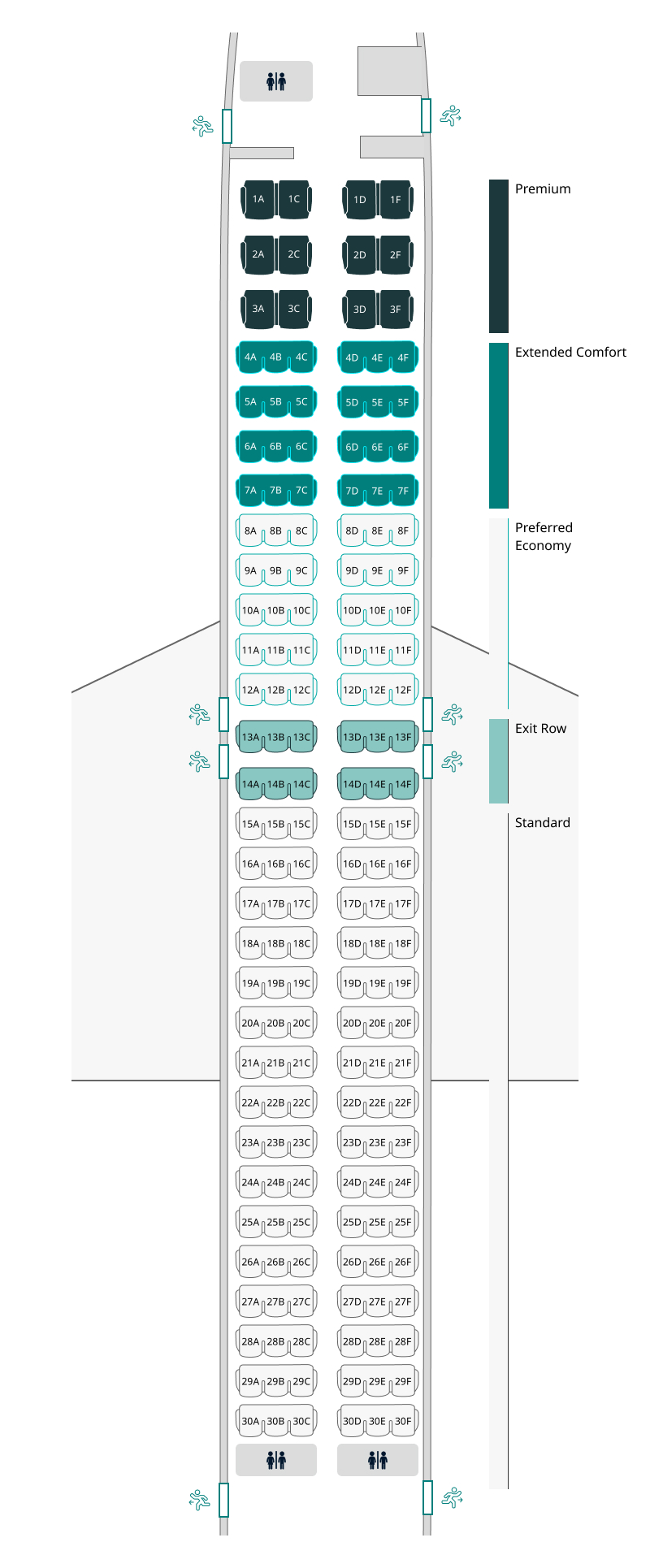

CURRENT LEGACY LAYOUT 1: WestJet's live 737-800 page publishes 174 seats: Premium 2-2 rows 1-3 (12), Extended Comfort rows 4-7 (24), and remaining Economy rows 8-30 (138), including Preferred rows 8-12 and exits 13-14. Row 12, forward exit row 13 and last row 30 do not recline; row 14 retains recline. Premium maps to canonical premium_economy; Extended Comfort maps to extra_legroom_economy. DERIVED: bulkhead storage, exit restrictions, divider and approximate wing band. Config code is a SeatLink descriptor. Window alignment starts unknown/no_window_seat and binds the variant-exact engineering grid.

What changed

  1. Jul 16, 2026Initial creation of 737-800 legacy layout 1 (174 seats: 12 Premium / 24 Extended Comfort / 138 other Economy) from WestJet-published specifications and seat-map diagram; generated by scratchpad/gen-ws-737-family.js.
