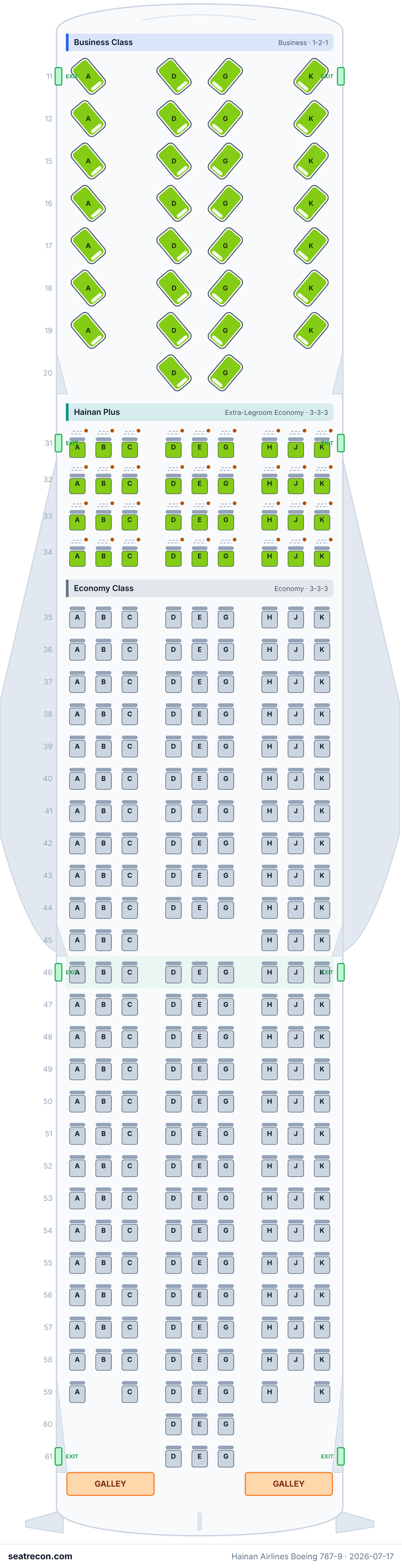

Hainan Airlines Boeing 787-9 seat map

Boeing 787-9 official layout 2 (292 seats)
292 seats30J/36N/226YLast verified Jul 17, 2026

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
WINGBusiness ClassBusiness · 1-2-1Hainan PlusExtra-Legroom Economy · 3-3-3Economy ClassEconomy · 3-3-3GALLEY (both_sides) — Monument type and position reproduced from Hainan Airlines’ published configuration drawing.🍽 GALLEYGALLEY (both_sides) — Monument type and position reproduced from Hainan Airlines’ published configuration drawing.🍽 GALLEY111215161718192031323334353637383940414243444546474849505152535455565758596061ADGKADGKADGKADGKADGKADGKADGKDGABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKABCDEGHJKACDEGHKDEGDEGEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Cabins

Business Class

30 seats · 1-2-1 (reverse herringbone) · lie-flat
Cirrus 3
Pitch
42"published
Seat
Lie-flat bed
Screen
16"

Hainan Plus

36 seats · 3-3-3
Pitch
36"published
Seat
Extra-legroom seat
Screen
11"

Economy Class

226 seats · 3-3-3
Pitch
32"published
Seat
Standard seat
Screen
11"

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

1 galley · 4 door pairs

🚪 EXIT × 4🍽 GALLEY × 1
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 17, 2026.

How this map was built

Hainan’s live fleet catalog identifies official 787-9 layout 2 as 30 Business / 36 Hainan Plus / 226 Economy = 292. The drawing is transcribed row by row. Business is seven full 1-2-1 rows at 11-12 and 15-19 plus centre seats D/G at row 20 (30). Hainan Plus is four full 3-3-3 rows 31-34 (36). Economy is rows 35-44 full, row 45 side triples only, rows 46-58 full, row 59 in tapered 2-3-2, and centre triples at rows 60-61 (226). The product page publishes Cirrus 3 Business at 42 in pitch/78 in bed, Hainan Plus at 36 in, and Economy at 32 in. Window alignment remains unknown because no 787-9 engineering grid exists.

What changed

  1. Jul 17, 2026Initial Hainan Airlines Boeing 787-9 official layout 2 (292 seats) configuration.
