Thai Airways International Boeing 777-300ER seat map

777-300ER (303 seats: Royal First + Royal Silk + Economy, 3-class)
303 seats8F/40J/255Y3 aircraft (as of Jul 14, 2026)Last verified Jul 14, 2026
Parts of this layout are reconstructed from airline-published seat counts — some seat positions are approximate.

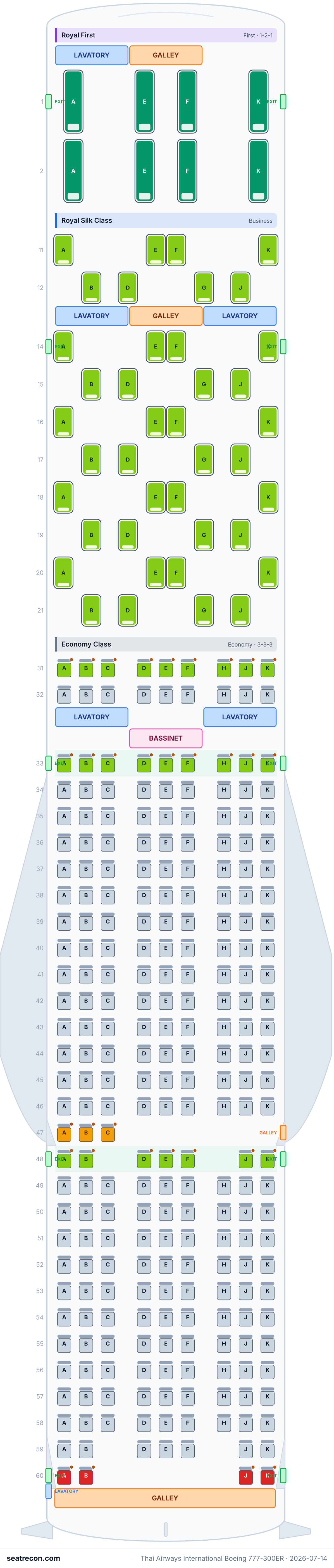

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
WINGRoyal FirstFirst · 1-2-1Royal Silk ClassBusinessEconomy ClassEconomy · 3-3-3WC (left)🚻 WCGALLEY (full_width) — Forward galley/lavatories ahead of Royal First.🍽 GALLEYWC (left)🚻 WCGALLEY (center) — Galley/lavatories between Royal First/Zone A and Zone B Royal Silk.🍽 GALLEYWC (right)🚻 WCWC (left) — Lavatories between Zone B and Zone C economy.🚻 WCWC ♿ (right)♿ WC ♿BASSINET (center) — Bassinet bulkhead at the front of the over-wing cabin.🍼 BASSINETGALLEY (full_width) — Aft galley.🍽 GALLEY1211121415161718192021313233343536373839404142434445464748495051525354555657585960AEFKAEFKAEFKBDGJAEFKBDGJAEFKBDGJAEFKBDGJAEFKBDGJABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCABDEFJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABDEFJKABJKEXIT (door) — Door 1 (forward).EXITEXIT (door) — Door 1 (forward).EXITEXIT (door) — Door 2.EXITEXIT (door) — Door 2.EXITEXIT (door) — Door 3 (mid-forward).EXITEXIT (door) — Door 3 (mid-forward).EXITGALLEY — Galleys in the centre and right of row 47.GALLEYEXIT (door) — Door 4.EXITEXIT (door) — Door 4.EXITWC — Aft lavatories in the centre of the last row.WCEXIT (door) — Door 5 (aft).EXITEXIT (door) — Door 5 (aft).EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Best & worst seats

Our rating engine's picks for this cabin layout — see any seat's full reasoning in the map above.

Pick these
  • 1A, 1E, 1F, 1K, 2A, 2E — Semi-private Royal First "Elite Suite": 84" pitch and a 180-degree fully-flat 78" bed.
Think twice
  • 60A, 60B, 60J, 60K — Last row: recline is limited or fixed against the rear bulkhead.

Cabins

Royal First

8 seats · 1-2-1 · lie-flat
Collins Aerospace Elite
Pitch
84"published
Width
23"published
Seat
Lie-flat bed
Screen
24"
Power
AC power outlet · USB-A

THAI publishes 84" pitch, 23" width and a 180-degree fully-flat bed (marketed as ~7 feet / a "generous 24-inch" personal space); 24" personal screen.

Royal Silk Class

40 seats · Staggered layout · lie-flat
Stelia Aerospace Solstys III
Pitch
45"published
Width
23"published
Seat
Lie-flat bed
Screen
18"
Power
AC power outlet · USB-A

THAI publishes 44-46" pitch (staggered), 23" width and a 180-degree fully-flat 75-76" bed; 18" personal screen.

Economy Class

255 seats · 3-3-3
Safran 5751
Pitch
31.5"published
Width
18.1"published
Seat
Standard seat
Screen
12"
Power
AC power outlet · USB-A

THAI publishes 31-32" pitch and 18.1" width; the seatback reclines to 120 degrees from a 110-degree upright position.

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

6 lavatories · 4 galleys · 5 door pairs

🍽 GALLEY × 4🚻 WC × 5🚪 EXIT × 5🍼 BASSINET × 1♿ WC ♿ × 1

Amenities

Wi-Fi
Available
THAI Sky Connect · paid · THAI Sky Connect in-flight Wi-Fi offered on the 777-300ER (paid, by credit/debit card); THAI notes it is unavailable on some airframes.
Entertainment
Seatback screens
Personal seat-back high-definition screens in every cabin.
Power
AC power outlet · USB-A
THAI lists an AC power outlet (110 VAC) and a USB port at every seat in all cabins; connector modelled as USB-A (type not specified).
Food & drink
Complimentary meal service on international flights; Thai and international menus.
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 14, 2026.

  • Thai Airways InternationalPRIMARY SOURCERetrieved Jul 14, 2026

    Boeing 777-300ER (77Y): 3 aircraft, 303 seats — Royal First 8, Royal Silk 40, Economy 255; Royal First = Collins "Elite", pitch 84", width 23", bed 78", 180-degree recline, 24" monitor; Royal Silk = Stelia Aerospace Solstys III, pitch 44"/46", width 23", bed 75-76", 180-degree recline, 18" monitor; Economy = Safran 5751, pitch 31"/32", width 18.1", 12" monitor; 12 lavatories.

    https://www.thaiairways.com/en-us/content/our-fleet/B777-300ER/ ↗
  • Thai Airways InternationalPRIMARY SOURCERetrieved Jul 14, 2026

    Official 777-300ER (77Y) cabin map: Royal First 1-2-1 rows 1-2; Royal Silk staggered 1-2-1 (Zone A 8 seats rows 11-12, Zone B 32 seats rows 14-21); Economy 3-3-3 in three zones (Zone B 18 rows 31-32, Zone C 129 rows 33-47 over the wing, Zone D 108 rows 48-60); exit doors, galleys, lavatories and bassinet positions.

    The drawing depicts ~3 more Economy seats in Zone C than the airline's own stated Economy total (255); reconciled to the published counts per AUTHORING §5b (see config.notes).

    https://www.thaiairways.com/content/dam/thaiairways/images/ouraircraft/ouraircraft-map/ouraircraft-77Y.png ↗
  • Thai Airways InternationalPRIMARY SOURCERetrieved Jul 14, 2026

    Royal First on the 777-300ER: fully reclining flat-bed "Elite Suite" with up to 7 feet of private space, 180-degree fully-flat bed, ~24-inch personal space and HD flat-screen monitors.

    https://www.thaiairways.com/en_HK/experience_my_thai/our_aircraft/seating/seating-B777-300ER.page ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 14, 2026

    Thai Airways operates 17 Boeing 777-300ER; three-class layout 8 First / 40 Business / 255 Economy = 303 (3 aircraft, ex-BOC Aviation with Royal First).

    Fleet-tracking article; used for the in-service count and cross-check of the three-class split and Royal First provenance.

    https://en.wikipedia.org/wiki/Thai_Airways_International_fleet ↗
How this map was built

THAI's three-class 777-300ER (internal type code 77Y), 3 aircraft (ex-BOC Aviation airframes retaining Royal First cabins), reserved for premium long-haul routes. Per-cabin counts and dimensions are published on the thaiairways.com fleet page: Royal First 8 (1-2-1 Collins "Elite Suite", 84" pitch, 23" width, 180-degree flat 78" bed, 24" screen), Royal Silk 40 (staggered 1-2-1 Stelia Solstys III, 44-46" pitch, 23" width, 180-degree flat 75-76" bed, 18" screen), Economy 255 (3-3-3 Safran 5751, 31-32" pitch, 18.1" width, 12" screen). Grid read from THAI's published cabin map (ouraircraft-77Y.png): Royal First rows 1-2 (A/E/F/K). Royal Silk Zone A rows 11-12 (8) + Zone B rows 14-21 (32) = 40; here "together" rows (centre pair together) use A/E/F/K and "apart" rows use B/D/G/J. Economy zones: Zone B rows 31-32 (18), Zone C rows 33-47 over the wing (129), Zone D rows 48-60 (108). LAYOUT PROVENANCE mixed (AUTHORING.md §5b): the airline's LOPA drawing depicts three extra Economy seats in Zone C versus its own stated Economy total of 255 (Zone C is labelled 129 but the drawing sums to ~132). The published numeric counts win: Zone C is reconciled to 129 by modelling row 47 as a left-block-only partial (ABC; the centre and right sections read as galleys on the map), matching the 255 total and the 303 grand total also stated on the fleet page and the Wikipedia fleet article. Zone D rows 48 and 59 are 2-3-2 tapers and row 60 is an outer-pairs-only last row flanking the aft lavatories. windowAlignment left "unknown" on all window seats (published map shows positions, not window alignment; no 777 engineering window grid). Recline: First/Business 180-degree flat; Economy seatback 110-120 degrees (not modelled numerically).

What changed

  1. Jul 14, 2026Initial TG 777-300ER three-class (77Y, 303-seat) config built from THAI's published cabin map + fleet spec page; Zone C reconciled to the published 255 Economy total per AUTHORING §5b.
