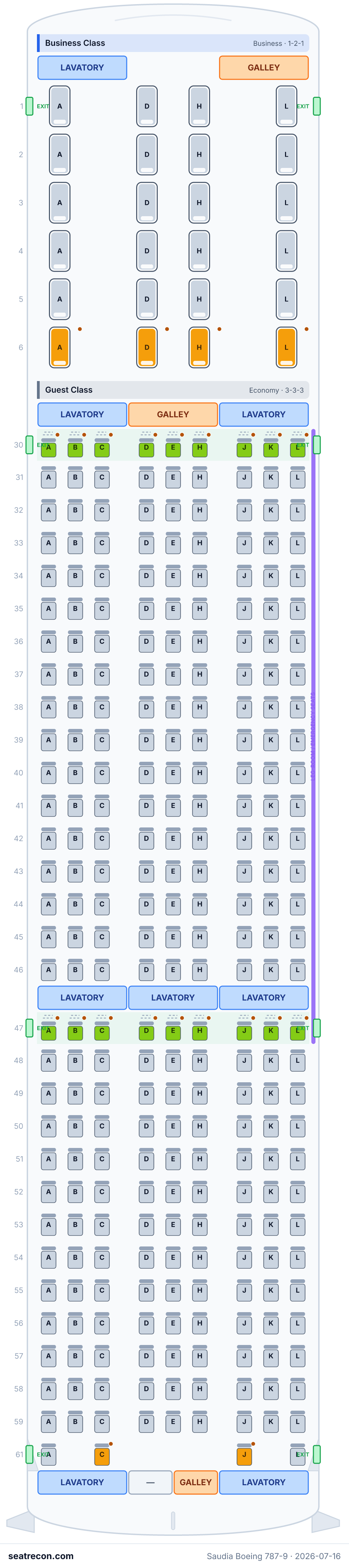

Saudia Boeing 787-9 seat map

Boeing 787-9 (298 seats: 24 Business / 274 Guest)
298 seats24J/18N/256YLast verified Jul 16, 2026
Parts of this layout are reconstructed from airline-published seat counts — some seat positions are approximate.

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
Zone: Leg-Room / Emergency seats (premium)LEG-ROOM / EMERGENCY SEATSBusiness ClassBusiness · 1-2-1Guest ClassEconomy · 3-3-3WC (left) — Forward left lavatory.🚻 WCGALLEY (right) — Forward galley.🍽 GALLEYWC ♿ (left) — Door 2 accessible lavatory, immediately after Business row 6.♿ WC ♿GALLEY (center) — Door 2 galley complex.🍽 GALLEYWC (right) — Door 2 right lavatory.🚻 WCWC (left) — Door 3 left lavatory.🚻 WCWC ♿ (center) — Door 3 accessible center lavatory.♿ WC ♿WC (right) — Door 3 right lavatory.🚻 WCWC (left) — Aft left lavatory.🚻 WC— (center) — Prayer area shown on the official map.—GALLEY (full_width) — Aft galley complex.GALLEYWC (right) — Aft right lavatory.🚻 WC12345630313233343536373839404142434445464748495051525354555657585961ADHLADHLADHLADHLADHLADHLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLACJLEXIT (door) — Door 1.EXITEXIT (door) — Door 1.EXITEXIT (door) — Door 2, before Guest row 30.EXITEXIT (door) — Door 2, before Guest row 30.EXITEXIT (door) — Door 3.EXITEXIT (door) — Door 3.EXITEXIT (door) — Door 4 (aft).EXITEXIT (door) — Door 4 (aft).EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Best & worst seats

Our rating engine's picks for this cabin layout — see any seat's full reasoning in the map above.

Worth knowing
  • 6A, 6L — Last Business row immediately ahead of the Door 2 lavatory — lavatory noise and queueing may be noticeable.
  • 6D, 6H — Last Business row immediately ahead of the Door 2 galley — galley light and service noise may be noticeable.
  • 61C, 61J — Aft lavatories are immediately behind — lavatory noise and queueing may be noticeable.

Cabins

Business Class

24 seats · 1-2-1 (reverse herringbone)
Pitch
47"published
Width
20"published
Seat
Lie-flat bed
Screen
Screen fitted (size unpublished)

47 in pitch and 20 in width per Saudia's current Boeing 787 fleet page.

Guest Class

274 seats · 3-3-3
Pitch
32"published
Width
16.8"published
Seat
Standard seat, Extra-legroom seat
Screen
Screen fitted (size unpublished)

Saudia publishes 32 in pitch and a 16.3-17.3 in width range for Guest Class.

Leg-Room / Emergency seats

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

8 lavatories · 3 galleys · 4 door pairs

🚻 WC × 6🍽 GALLEY × 3🚪 EXIT × 4♿ WC ♿ × 2• — × 1

Amenities

Wi-Fi
Available
Saudia's current 787-9 tab lists Wi-Fi Connectivity and GSM in both cabins; provider and pricing are not published.
Entertainment
Seatback screens
Saudia lists a personal screen in both cabins. The map legend also shows an overhead-screen symbol but does not assign it to a cabin, so no separate coverage is asserted.
Power
Available
Saudia lists USB Port and Power Outlet amenities in both cabins; connector and outlet types are not specified.
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 16, 2026.

  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Current official Boeing 787 fleet content publishes one 787-9 tab and one 787-10 tab, each with 24 Business seats in 1-2-1 and Guest Class in 3-3-3; it gives the accommodation, 47 in / 20 in Business pitch/width, 32 in / 16.3-17.3 in Guest pitch/width, and cabin amenities.

    The official content is hosted on Saudia's UAT subdomain, whose self-signed certificate chain required TLS verification to be bypassed for archiving. The 787-10 tab is embedded in the archived application state rather than server-rendered into the visible tab panel.

    https://booking-uat.dcloud.saudia.com/explore/about-saudia/our-fleet/boeing-b787 ↗
  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Official Boeing 787-9 standard-configuration map: Business rows 1-6 in 1-2-1; Guest rows 30-61 in 3-3-3 with Extra Legroom row 30, Door 3 Exit/Extra Legroom row 47, four-seat taper row 61, toilets, galleys, prayer area and four door pairs. Its numeric table states 24 Business / 274 Guest.

    Live origin returned an Imperva challenge; retrieved as original PDF bytes through Wayback raw snapshot 20240627030929id_. The drawing itself enumerates 283 Guest seats, nine more than the PDF and current fleet page both state. Numeric counts win; ordinary full row 60 is omitted as the least disruptive reconciliation, and exact real-world absent-row identity remains unproven.

    https://www.saudia.com/pages/-/media/Project/SA/SC/images/Our-Fleet/BOEING-B787-9-pdf.pdf?rev=f6ff928c085f4443953748c1cc45d692&hash=ECE42542C56DCE9A05D4AB6A1DB07867 ↗
  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Current Guest Class fare table states that Leg-Room and Emergency seats are not included with standard-seat selection, including fare brands where standard or preferred selection is free.

    Fleet-wide seat-selection policy; it does not publish aircraft-specific prices or guarantee that every special position is available on every flight.

    https://booking-uat.dcloud.saudia.com/book/travel-information/branded-fares ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 16, 2026

    Current neutral fleet table lists 13 Boeing 787-9s with one 24J/274Y/298 accommodation and 8 Boeing 787-10s with one 24J/333Y/357 accommodation.

    Used only to cross-check that one accommodation is currently listed for each variant; the table is headed as of 2025 and its in-service counts carry citation-needed markers, so fleetCount is omitted.

    https://en.wikipedia.org/w/index.php?title=Saudia&action=raw ↗
How this map was built

ONE VERIFIED CURRENT CONFIG: Saudia's current official 787 page publishes one 787-9 tab/map, and the neutral current fleet table lists one 24J/274Y accommodation. BUSINESS: the official drawing shows 24 seats, rows 1-6, in reverse-herringbone 1-2-1 (A | D,H | L), with every seat structurally direct-aisle-access. Saudia publishes 47 in pitch and 20 in width; the hardware model, exact recline and bed dimensions are not published. GUEST: Saudia twice publishes 274 seats, 3-3-3, 32 in pitch and 16.3-17.3 in width. The official drawing is internally inconsistent: it depicts full nine-seat rows 30-60 plus four seats at row 61, or 283 seats. Following the numeric-count tie-break, this grid preserves every distinctive row, exit, cabin break and the published row-61 taper but omits otherwise ordinary full row 60, yielding 30 full rows plus four seats = 274. The Economy cabin is therefore derived and the exact real-world identity of the absent ordinary row is not proven. Rows 30 and 47 comprise 18 positions coded Extra Legroom or Exit Seat and are modeled as a location-priced zone; Saudia's fare page excludes Leg-Room and Emergency seats from standard-seat selection inclusions. Monuments and door positions follow the official drawing. No 787 window grid is bound; window alignment remains unknown for all window positions.

What changed

  1. Jul 16, 2026Initial Saudia 787-9 current 24J/274Y configuration; mixed-provenance grid reconciles the official drawing's extra ordinary row to the twice-published 298-seat total.
