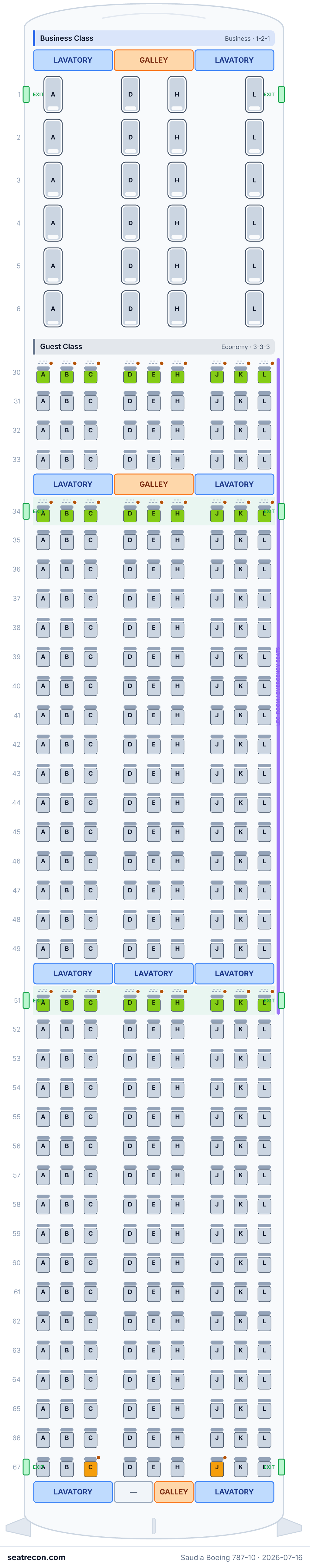

Saudia Boeing 787-10 seat map

Boeing 787-10 (357 seats: 24 Business / 333 Guest)
357 seats24J/27N/306YLast verified Jul 16, 2026
Parts of this layout are reconstructed from airline-published seat counts — some seat positions are approximate.

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
Zone: Leg-Room / Emergency seats (premium)LEG-ROOM / EMERGENCY SEATSBusiness ClassBusiness · 1-2-1Guest ClassEconomy · 3-3-3WC (left) — Forward left lavatory.🚻 WCGALLEY (center) — Forward galley complex.🍽 GALLEYWC (right) — Forward right lavatory.🚻 WCWC ♿ (left) — Door 2 accessible left lavatory.♿ WC ♿GALLEY (center) — Door 2 galley complex.🍽 GALLEYWC (right) — Door 2 right lavatory.🚻 WCWC (left) — Door 3 left lavatory.🚻 WCWC ♿ (center) — Door 3 accessible center lavatory.♿ WC ♿WC (right) — Door 3 right lavatory.🚻 WCWC (left) — Aft left lavatory.🚻 WC— (center) — Prayer area shown on the official map.—GALLEY (full_width) — Aft galley complex.GALLEYWC (right) — Aft right lavatory.🚻 WC12345630313233343536373839404142434445464748495152535455565758596061626364656667ADHLADHLADHLADHLADHLADHLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLEXIT (door) — Door 1.EXITEXIT (door) — Door 1.EXITEXIT (door) — Door 2.EXITEXIT (door) — Door 2.EXITEXIT (door) — Door 3.EXITEXIT (door) — Door 3.EXITEXIT (door) — Door 4 (aft).EXITEXIT (door) — Door 4 (aft).EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Best & worst seats

Our rating engine's picks for this cabin layout — see any seat's full reasoning in the map above.

Worth knowing
  • 67C, 67J — Aft lavatories are immediately behind — lavatory noise and queueing may be noticeable.

Cabins

Business Class

24 seats · 1-2-1 (reverse herringbone)
Pitch
47"published
Width
20"published
Seat
Lie-flat bed
Screen
Screen fitted (size unpublished)

47 in pitch and 20 in width per Saudia's current Boeing 787 fleet page.

Guest Class

333 seats · 3-3-3
Pitch
32"published
Width
16.8"published
Seat
Standard seat, Extra-legroom seat
Screen
Screen fitted (size unpublished)

Saudia publishes 32 in pitch and a 16.3-17.3 in width range for Guest Class.

Leg-Room / Emergency seats

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

9 lavatories · 3 galleys · 4 door pairs

🚻 WC × 7🍽 GALLEY × 3🚪 EXIT × 4♿ WC ♿ × 2• — × 1

Amenities

Entertainment
Seatback screens
Saudia lists a personal screen in both cabins. The map legend also shows an overhead-screen symbol but does not assign it to a cabin, so no separate coverage is asserted.
Power
Available
Saudia lists USB Port and Power Outlet amenities in both cabins; connector and outlet types are not specified.
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 16, 2026.

  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Current official Boeing 787 fleet content publishes one 787-9 tab and one 787-10 tab, each with 24 Business seats in 1-2-1 and Guest Class in 3-3-3; it gives the accommodation, 47 in / 20 in Business pitch/width, 32 in / 16.3-17.3 in Guest pitch/width, and cabin amenities.

    The official content is hosted on Saudia's UAT subdomain, whose self-signed certificate chain required TLS verification to be bypassed for archiving. The 787-10 tab is embedded in the archived application state rather than server-rendered into the visible tab panel.

    https://booking-uat.dcloud.saudia.com/explore/about-saudia/our-fleet/boeing-b787 ↗
  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Official Boeing 787-10 standard-configuration map: Business rows 1-6 in 1-2-1; Guest rows 30-67 in 3-3-3 with cabin breaks before rows 34 and 51, Extra Legroom rows 30/34, Door 3 Exit/Extra Legroom row 51, toilets, galleys, prayer area and four door pairs. Its numeric table states 24 Business / 333 Guest.

    Live origin returned an Imperva challenge; retrieved as original PDF bytes through Wayback raw snapshot 20240626134751id_. The drawing itself enumerates 336 Guest seats because it shows a center block of three at row 50, three more than the PDF and current fleet page both state. Numeric counts win; the conflicting row-50 center block is omitted and exact real-world row-50 availability remains unproven.

    https://www.saudia.com/pages/-/media/Project/SA/SC/images/Our-Fleet/BOEING-B787-10-780.pdf?rev=04e4f48eb2d14d6dad15e699fe1eec56&hash=FF498C22FB819924AD74F53A57B475AC ↗
  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Current Guest Class fare table states that Leg-Room and Emergency seats are not included with standard-seat selection, including fare brands where standard or preferred selection is free.

    Fleet-wide seat-selection policy; it does not publish aircraft-specific prices or guarantee that every special position is available on every flight.

    https://booking-uat.dcloud.saudia.com/book/travel-information/branded-fares ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 16, 2026

    Current neutral fleet table lists 13 Boeing 787-9s with one 24J/274Y/298 accommodation and 8 Boeing 787-10s with one 24J/333Y/357 accommodation.

    Used only to cross-check that one accommodation is currently listed for each variant; the table is headed as of 2025 and its in-service counts carry citation-needed markers, so fleetCount is omitted.

    https://en.wikipedia.org/w/index.php?title=Saudia&action=raw ↗
How this map was built

ONE VERIFIED CURRENT CONFIG: Saudia's current official 787 page publishes one 787-10 tab/map, and the neutral current fleet table lists one 24J/333Y accommodation. BUSINESS: the official drawing shows 24 seats, rows 1-6, in reverse-herringbone 1-2-1 (A | D,H | L), with every seat structurally direct-aisle-access. Saudia publishes 47 in pitch and 20 in width; the hardware model, exact recline and bed dimensions are not published. GUEST: Saudia twice publishes 333 seats, 3-3-3, 32 in pitch and 16.3-17.3 in width. The official drawing is internally inconsistent: it depicts full rows 30-49, a three-seat center block at row 50, and full rows 51-67, or 336 seats. Following the numeric-count tie-break, the row-50 center block is omitted, yielding 37 full rows = 333; the Economy cabin is therefore derived and exact row-50 availability is not proven. Rows 30, 34 and 51 comprise 27 positions coded Extra Legroom or Exit Seat and are modeled as a location-priced zone; Saudia's fare page excludes Leg-Room and Emergency seats from standard-seat selection inclusions. Monuments and door positions follow the official drawing. No 787 window grid is bound; window alignment remains unknown for all window positions.

What changed

  1. Jul 16, 2026Initial Saudia 787-10 current 24J/333Y configuration; mixed-provenance grid omits the official drawing's conflicting row-50 center block to match the twice-published 357-seat total.
