Saudia Boeing 777-300ER seat map

Boeing 777-300ER (290 seats; configuration 77Z)
290 seats12F/36J/242YLast verified Jul 16, 2026
Parts of this layout are reconstructed from airline-published seat counts — some seat positions are approximate.

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES

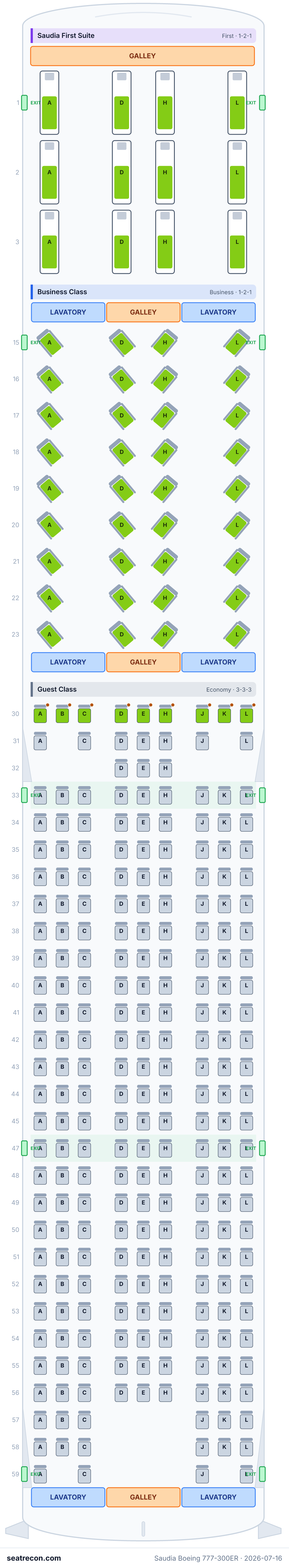

Saudia First SuiteFirst · 1-2-1Business ClassBusiness · 1-2-1Guest ClassEconomy · 3-3-3GALLEY (full_width) — Forward galley shown on the official 77Z map.🍽 GALLEYWC (both_sides)🚻 WCGALLEY (full_width) — Galley/vestibule between First and Business.🍽 GALLEYWC (both_sides)🚻 WCWC (both_sides)🚻 WCGALLEY (full_width) — Galley/vestibule between Business and Economy.🍽 GALLEYWC (both_sides)🚻 WCWC (both_sides)🚻 WCGALLEY (full_width) — Aft galley shown on the official 77Z map.🍽 GALLEYWC (both_sides)🚻 WC1231516171819202122233031323334353637383940414243444547484950515253545556575859ADHLADHLADHLADHLADHLADHLADHLADHLADHLADHLADHLADHLABCDEHJKLACDEHJLDEHABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCDEHJKLABCJKLABCJKLACJLEXIT — Door 1 (forward).EXITEXIT — Door 1 (forward).EXITEXIT — Door 2 between First and Business.EXITEXIT — Door 2 between First and Business.EXITEXIT — Door 3 at Economy row 33.EXITEXIT — Door 3 at Economy row 33.EXITEXIT — Door 4 at Economy row 47.EXITEXIT — Door 4 at Economy row 47.EXITEXIT — Door 5 (aft).EXITEXIT — Door 5 (aft).EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Cabins

Saudia First Suite

12 seats · 1-2-1
Pitch
82"published
Width
22"published
Seat
Enclosed suite

Saudia publishes 22 in width and 82 in pitch.

Business Class

36 seats · 1-2-1 (reverse herringbone)
Pitch
43"published
Width
20"published
Seat
Recliner

Saudia publishes 20 in width and 43 in pitch.

Guest Class

242 seats · 3-3-3
Pitch
32"published
Width
17.7"published
Seat
Standard seat

Saudia publishes 16.8-18.5 in width and 32 in pitch.

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

3 lavatories · 4 galleys · 5 door pairs

🚪 EXIT × 5🍽 GALLEY × 4🚻 WC × 3
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 16, 2026.

  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Current official Boeing 777 fleet page enumerates configurations 773, 77A, 77D, 77Z and 77H and publishes each configuration’s total and per-cabin seat counts, abreast layouts, seat width and pitch.

    Saudia’s public www host blocked automated access, so the current official content was retrieved from Saudia’s UAT host. This source proves current public configuration codes/counts and dimensions; the linked official PDFs prove individual row grids.

    https://booking-uat.dcloud.saudia.com/explore/about-saudia/our-fleet/boeing-b777 ↗
  • SaudiaPRIMARY SOURCERetrieved Jul 16, 2026

    Official Saudia Boeing 777-300ER configuration 77Z PDF publishes the cabin seat map, row numbers, column letters, exits, monuments and special-seat legend.

    Exact PDF bytes were retrieved from the Wayback Machine raw-byte endpoint because the live Saudia asset was bot-blocked. The diagram appears to include three Economy icons at row 46, but its explicit table says 242 Economy; numeric accommodation therefore takes precedence.

    https://www.saudia.com/pages/-/media/Project/SA/SC/images/Our-Fleet/BOEING-B777-368ER-77Z.pdf?rev=154402dba85949f9ba64e76d1966b9d7&hash=57327F0A533119FD623EB66BE5665906 ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 16, 2026

    Neutral fleet table independently corroborates active Saudia Boeing 777-300ER passenger totals of 290, 381, 405 and 413 seats and separately identifies a 492-seat Air Atlanta Icelandic wet-lease operation.

    Used only to corroborate the current configuration set. It does not supply row positions; the temporary 492-seat wet-lease interior has no Saudia-published seat map and is not modeled.

    https://en.wikipedia.org/wiki/Saudia ↗
How this map was built

Official configuration 77Z: 12 Saudia First Suites at rows 1-3 (1-2-1), 36 Business seats at rows 15-23 (1-2-1), and an explicit 242 Guest Class seats (3-3-3). The PDF visibly appears to draw D/E/H at row 46; including those three icons would produce 245 Economy seats and conflict with both the PDF table and current fleet page. Following the project rule that explicit numeric accommodation wins, row 46 is omitted and the Economy grid is marked derived, making layoutProvenance mixed. Guest Class therefore uses rows 30-45 and 47-59 with published partial rows 31-32 and 57-59. The current Saudia page does not list the former 305-seat three-class configuration. The separately operated 492-seat Air Atlanta Icelandic wet-lease interior is not modeled because no Saudia primary row map is published for it.

What changed

  1. Jul 16, 2026Added current Saudia Boeing 777-300ER configuration 77Z (12F/36J/242Y; 290 seats) from official published maps.
