Qatar Airways Boeing 787-9 seat map

787-9 (311 seats: 30 Business / 281 Economy)
311 seats30J/281Y27 aircraft (as of Jul 14, 2026)Last verified Jul 14, 2026

Seat assessment

Seat assessments are pending because this configuration has unresolved source or layout conflicts. Historical ratings are not endorsed by this audit.

Seat map

Hover or tap any seat to see its rating and details.

Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
Business ClassBusiness ClassBusiness · 1-2-1Economy ClassEconomy ClassEconomy · 3-3-3LAVATORY (left)🚻 LAVATORYGALLEY (full_width) — Forward galley (Door 1 vestibule).🍽 GALLEYLAVATORY (right)🚻 LAVATORYLAVATORY (left) — Door 2 vestibule lavatory (flanks Economy row 10).🚻 LAVATORYCLOSET (center) — Coat closet behind Business.CLOSETGALLEY (full_width) — Mid-forward galley behind Business (Door 2).GALLEYLAVATORY (right) — Door 2 vestibule lavatory (flanks Economy row 10).🚻 LAVATORYLAVATORY (left) — Door 3 lavatory bank.🚻 LAVATORYLAVATORY ♿ (center) — Wheelchair-accessible lavatory at the Door 3 bank.LAVATO…LAVATORY (center) — Door 3 centre lavatory.LAVATO…LAVATORY (right) — Door 3 lavatory bank.🚻 LAVATORYLAVATORY (left)🚻 LAVATORYGALLEY (full_width) — Aft galley (Door 4).🍽 GALLEYLAVATORY (right)🚻 LAVATORY12345678101112141516171819202122232425262728293031323334353637383940414243AKAEFKAEFKAEFKAEFKAEFKAEFKAEFKDEFABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKBCDEFHJABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKABCDEFHJKBCDEFHJDEFEXIT (door) — Door 1 (forward, boarding).EXIT (door) — Door 1 (forward, boarding).EXITEXIT (door) — Door 1 (forward, boarding).EXIT (door) — Door 1 (forward, boarding).EXITEXIT (door) — Door 2.EXIT (door) — Door 2.EXITEXIT (door) — Door 2.EXIT (door) — Door 2.EXITEXIT (door) — Door 3.EXIT (door) — Door 3.EXITEXIT (door) — Door 3.EXIT (door) — Door 3.EXITEXIT (door) — Door 4 (aft).EXIT (door) — Door 4 (aft).EXITEXIT (door) — Door 4 (aft).EXIT (door) — Door 4 (aft).EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Cabins

Business Class

30 seats · 1-2-1 (reverse herringbone) · lie-flat
Pitch
42"published
Width
22"published
Seat
Lie-flat bed

42 in pitch, 22 in width and a fully-flat 180-degree bed per the official Qatar Airways B787-9 seat map; bed length not published.

Economy Class

281 seats · 3-3-3
Pitch
31"approx
Width
17"approx
Seat
Standard seat

31-32 in pitch and 16.9-17.4 in width (varies by row/section) with 6-degree recline, per the official Qatar Airways B787-9 seat map.

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

10 lavatories · 3 galleys · 4 door pairs

🍽 GALLEY × 3🚻 WC × 9🚪 EXIT × 4🧥 CLOSET × 1♿ WC ♿ × 1

Amenities

Entertainment
Seatback screens
Personal seat-back TV with Audio Video onDemand (AVOD) at every seat, per the official seat map amenities panel; screen size not published.
Food & drink
Complimentary inflight meals on all flights; 20 special meal types available on request (per the official seat map amenities panel).

Seat map image

A printable snapshot of this exact layout — save it for boarding-day reference. The interactive map above stays the source of truth.

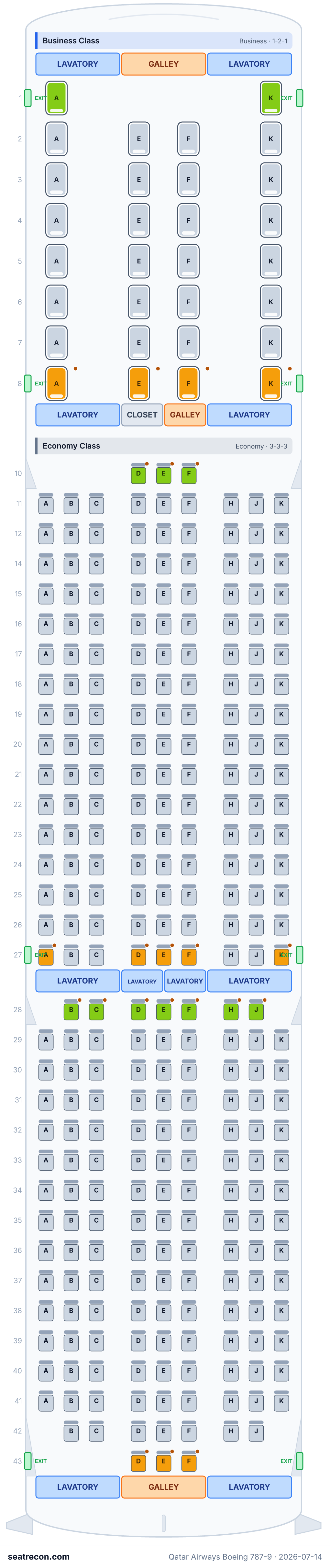

Qatar Airways Boeing 787-9 seat map diagram — Business Class, Economy Class (311 seats)

Download PNG

Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 14, 2026.

  • Qatar AirwaysPRIMARY SOURCERetrieved Jul 14, 2026

    Official Boeing 787-9 seat map: 30 Business (42 in pitch, 22 in width, flatbed 180-degree recline) and 281 Economy (31/32 in pitch, 16.9/17.4 in width, 6-degree recline) = 311; full cabin layout, monuments and doors.

    Direct fetch from qatarairways.com failed (HTTP/2 INTERNAL_ERROR); retrieved via the Wayback Machine raw snapshot 20230522171929if_. This is the same PDF Qatar links from its current fleet page (per the 2026 Wikipedia fleet article).

    https://www.qatarairways.com/content/dam/documents/fleet/B787-9.pdf ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 14, 2026

    Qatar Airways fleet table lists the Boeing 787-9 as 30 Business / 281 Economy = 311 seats, citing the official Qatar Airways B787-9 seat map; 27 in service.

    https://en.wikipedia.org/w/index.php?title=Qatar_Airways_fleet&action=raw ↗
How this map was built

Qatar Airways' sole Boeing 787-9 cabin: 30 Business / 281 Economy = 311. Transcribed ROW-BY-ROW from the official Qatar Airways B787-9 seat-map PDF (qatarairways.com/content/dam/documents/fleet/B787-9.pdf), rendered from the Wayback snapshot 20230522171929 and still the map Qatar links from its current fleet listing (per the 2026 Wikipedia fleet table, which also states 30J/281Y=311). BUSINESS: lie-flat 1-2-1 (columns A | E,F | K); row 1 is a two-seat bulkhead row with only the window suites 1A/1K (the centre position is occupied by the forward galley/console), rows 2-8 are full 1-2-1 = 2 + 7x4 = 30. Pitch 42 in / width 22 in / fully-flat 180-degree recline per the map's technical-details table. The seat product is not named on the official map (Qatar's 787 Business is widely reported as the Collins/B-E Aerospace Super Diamond reverse-herringbone, but no primary source names it, so hardwareModel is omitted); geometryHint reverse_herringbone is a structural read of the angled 1-2-1 all-aisle-access schematic. ECONOMY: 3-3-3 (A,B,C | D,E,F | H,J,K), pitch 31-32 in / width 16.9-17.4 in / 6-degree recline per the map. The cabin is split by Door 3 (lavatory bank after row 27). Row numbering skips 13. Partial rows read directly from the map: row 10 = D,E,F only (3, bulkhead behind the Door 2 galley/lavatories); rows 11,12,14-26 full (15x9=135); row 27 full (9, backs onto Door 3 lavatories); row 28 = B,C,D,E,F,H,J (7, bulkhead facing Door 3 lavatories, window seats A/K removed); rows 29-41 full (13x9=117); row 42 = B,C,D,E,F,H,J (7, tapered, A/K removed); row 43 = D,E,F only (3, last row against the aft galley/lavatories) => 3+135+9+7+117+7+3 = 281. windowAlignment left "unknown" for all window seats and "no_window_seat" for the rest — a top-down schematic does not prove a real window lines up (no 787 window grid used). Bulkhead partial rows 10/28 are rated good for their extra legroom; the map does not mark bassinet positions, extra-legroom pricing, or in-seat power/Wi-Fi, so none are asserted. Four door pairs (1 fwd, 2 behind Business, 3 mid after row 27, 4 aft) placed at the galley/lavatory monument breaks; no economy row sits directly beside a door (all door areas are monuments), so no exit_row attributes are set.

What changed

  1. Jul 14, 2026Initial Qatar Airways 787-9 config (30J/281Y = 311) transcribed row-by-row from the official Qatar Airways B787-9 seat-map PDF.
