Icelandair Boeing 737 MAX 8 seat map

737 MAX 8 (160 seats: 16 Saga Premium / 144 Economy)
160 seats16J/144Y17 aircraft (as of Jul 17, 2026)Last verified Jul 17, 2026

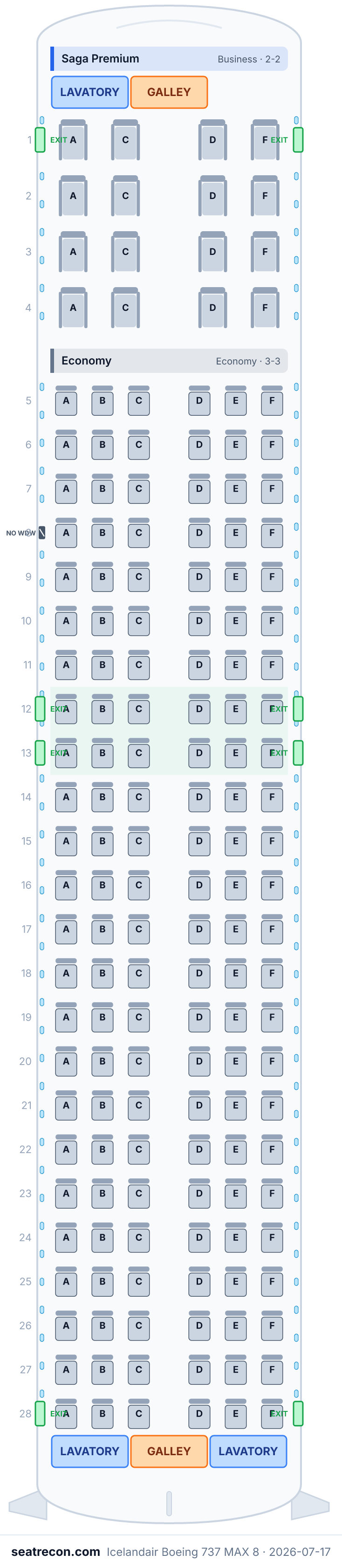

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
No window at seat 8A — Boeing routes the air-conditioning riser ducts up the left sidewall from the belly A/C packs to the ceiling distribution ducts, forward of the wing. The duct behind the sidewall panel displaces one left-side cabin window. Per Alaska fleet engineering this is standard on all 737 aircraft. (structural blank, confidence medium)NO WDWSaga PremiumBusiness · 2-2EconomyEconomy · 3-3WC (left)🚻 WCGALLEY (full_width)🍽 GALLEYWC (both_sides)🚻 WCGALLEY (full_width)🍽 GALLEYWC (both_sides)🚻 WC12345678910111213141516171819202122232425262728ACDFACDFACDFACDFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFABCDEFEXIT (door)EXITEXIT (door)EXITEXIT (type_iii_overwing)EXITEXIT (type_iii_overwing)EXITEXIT (type_iii_overwing)EXITEXIT (type_iii_overwing)EXITEXIT (door)EXITEXIT (door)EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Cabins

Saga Premium

16 seats · 2-2
Pitch
40"published
Width
20.5"published
Seat
Recliner

Economy

144 seats · 3-3
Pitch
31.5"published
Width
17.2"published
Seat
Standard seat

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

2 lavatories · 2 galleys · 4 door pairs

🍽 GALLEY × 2🚻 WC × 2🚪 EXIT × 4
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 17, 2026.

  • IcelandairPRIMARY SOURCERetrieved Jul 17, 2026

    Current Icelandair page publishes 160 seats for the MAX 8, 178 for the MAX 9, Saga Premium and Economy dimensions, a 21-aircraft MAX fleet, and the current type-specific tail roster.

    Direct curl returned a Cloudflare challenge; the snapshot is a rendered-text extract. The page's single diagram is the 160-seat MAX 8, so the MAX 9 row grid is not treated as published.

    https://www.icelandair.com/en-gb/about/our-fleet/boeing-737-max/ ↗
  • IcelandairPRIMARY SOURCERetrieved Jul 17, 2026

    Official 160-passenger 737 MAX diagram publishes four full 2-2 Saga Premium rows, twenty-four full 3-3 Economy rows numbered 5-28, over-wing exits at rows 12-13, and cabin monuments.

    The live Icelandair CDN timed out from this environment; the official SVG bytes were recovered through the Wayback raw-bytes endpoint. The diagram says 737-MAX and 160 passengers; the airline page identifies 160 as its MAX 8 configuration.

    https://pixels.icelandair.com/blt71c3bec232095a67.svg ↗
  • WikipediaINDEPENDENT SOURCERetrieved Jul 17, 2026

    The current fleet table publishes 16J/144Y for MAX 8, 16J/162Y for MAX 9, both 22J/161Y and 20J/164Y for 757-200, and 25J/237Y for 767-300ER.

    The table's 757 fleet count lags Icelandair's live July roster, so it is used for cabin splits only, not current airframe count.

    https://en.wikipedia.org/wiki/Icelandair ↗
  • Boeing Commercial AirplanesPRIMARY SOURCERetrieved Jul 17, 2026

    Boeing's July 2025 737 MAX airport-planning manual identifies the 737-8 and 737-9 variants and publishes their passenger-door and over-wing-exit geometry.

    Manufacturer engineering geometry does not establish Icelandair row numbering or cabin counts.

    https://www.boeing.com/content/dam/boeing/v2/airports/acaps/737MAX_RevK.pdf ↗
How this map was built

CURRENT CONFIG: Icelandair publishes 160 seats and the live roster lists 17 MAX 8s; Wikipedia supplies the 16J/144Y split. PUBLISHED MAP: Icelandair's official 160-passenger SVG enumerates four full 2-2 Saga Premium rows (1-4) and twenty-four full 3-3 Economy rows (5-28), with over-wing exits at rows 12-13 and forward/aft monuments. The airline page identifies 160 seats as the MAX 8, so the otherwise generic '737-MAX' diagram is bound to this variant. DIMENSIONS: Saga Premium 40 in pitch / 20.5 in width; Economy 31-32 in pitch / 17.2 in width. RATINGS: the diagram and cited pages publish no seat-specific advantages or drawbacks, so every seat remains baseline standard rather than adding inferred warnings. WINDOWS: the exact 737-max8 engineering grid is bound; only script-applied high-confidence structural blanks may override unknown, and the published schematic itself is not treated as window-alignment evidence.

What changed

  1. Jul 17, 2026Initial Icelandair 737 MAX 8 160-seat configuration.
