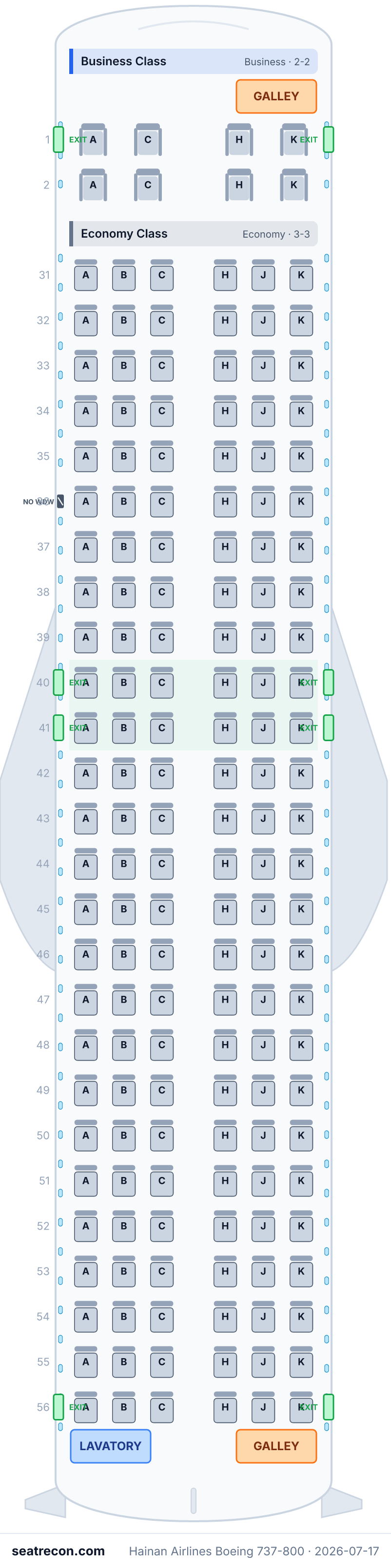

Hainan Airlines Boeing 737-800 seat map

Boeing 737-800 official layout 3 (164 seats)
164 seats8J/156YLast verified Jul 17, 2026
Parts of this layout are reconstructed from airline-published seat counts — some seat positions are approximate.

Seat map

Hover or tap any seat to see its rating and details.

Rating
GreatGoodStandardBe awareAvoid
Seat shape
SuiteLie-flatReclinerStandard
Flags & windows
Has a noteWindow mismatch flaggedNo window (structural blank)
Provenance
PUBLISHED MAPDERIVED LAYOUTMIXED SOURCES
No window at seat 36A — Boeing routes the air-conditioning riser ducts up the left sidewall from the belly A/C packs to the ceiling distribution ducts, forward of the wing. The duct behind the sidewall panel displaces one left-side cabin window. Per Alaska fleet engineering this is standard on all 737 aircraft. (structural blank, confidence medium)NO WDWWINGBusiness ClassBusiness · 2-2Economy ClassEconomy · 3-3GALLEY (right) — Monument type and position reproduced from Hainan Airlines’ published configuration drawing.🍽 GALLEYWC (left) — Monument type and position reproduced from Hainan Airlines’ published configuration drawing.🚻 WCGALLEY (right) — Monument type and position reproduced from Hainan Airlines’ published configuration drawing.🍽 GALLEY123132333435363738394041424344454647484950515253545556ACHKACHKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKABCHJKEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (type_iii_overwing) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (type_iii_overwing) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (type_iii_overwing) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (type_iii_overwing) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXITEXIT (door) — Position reproduced from Hainan Airlines’ published configuration drawing.EXIT

Tap or hover a seat for its rating and details. On a phone, pinch to zoom and drag to pan.

Cabins

Business Class

8 seats · 2-2
Seat
Recliner

Economy Class

156 seats · 3-3
Seat
Standard seat

Onboard facilities

Drawn on the interactive map above — hover a monument to confirm its position.

1 lavatory · 2 galleys · 4 door pairs

🚪 EXIT × 4🍽 GALLEY × 2🚻 WC × 1
Provenance

Sources

Every measurement and claim on this page traces back to one of these. Last verified Jul 17, 2026.

  • Hainan AirlinesPRIMARY SOURCERetrieved Jul 17, 2026

    Current official fleet catalog lists six Boeing 737-800 configurations: 158 (8 Business), 170 (8 Business), 164 (8 Business), 189, 186, and 179 and links the corresponding official configuration drawings.

    Each drawing says it is for reference purposes and the actual flight controls; the instances therefore set config.representative=true.

    https://www.hainanairlines.com/HUPortal/dyn/portal/DisplayPage?COUNTRY_SITE=INT&LANGUAGE=GB&PAGE=FLET&SITE=CBHZCBHZ ↗
  • Hainan AirlinesPRIMARY SOURCERetrieved Jul 17, 2026

    Official layout-3 drawing header states 8 Business / 156 Economy = 164 and shows the cabin geometry, exits and monuments.

    The glyph grid draws 162 Economy seats through row 57, six more than its own explicit 156-seat header and the live fleet table. Numeric counts control; the trailing row 57 is omitted and the Economy grid is marked derived.

    https://www.hainanairlines.com/go/image/FLET/737-800/737-800_01_en.png ↗
How this map was built

Hainan’s live fleet table and the header of its official layout-3 drawing state 8 Business / 156 Economy = 164. The same drawing visibly contains 27 full Economy glyph rows 31-57 (162 Economy), exactly one six-seat row too many and identical to the separate 170-seat drawing. Per AUTHORING §5b, explicit numeric counts win: rows 31-56 are retained as 26 full 3-3 rows (156), and the trailing drawn row 57 is omitted as the excess copied row. Business rows 1-2 and the remaining row/exit geometry come from the drawing; the Economy cabin is derived and layoutProvenance is mixed. windowGridType binds the exact 737-800 engineering grid.

What changed

  1. Jul 17, 2026Initial Hainan Airlines Boeing 737-800 official layout 3 (164 seats) configuration.
